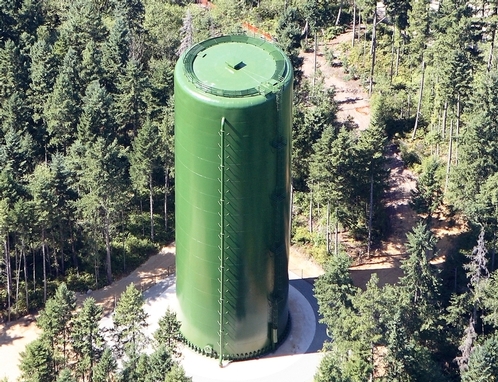

2006 Steel Tank Institute Tank of the Year Award Winner! The construction of this 53’d x 151’h 2.3MG water tank posed many challenges:
- Due to the height and capacity of the tank, the bottom shell courses were 1 ¼” thick.
- The site was exposed to extreme wind and rain throughout construction.
- The knuckle roof is self-supported with structural that was built in place and seal welded overhead
- The site was extremely tight with very restricted access to the backside of the tank.
Read more about our water and wastewater storage tank capabilities.
Name: 2.3 MG North Reservoir
Category: Steel Construction
One (1) 95’-0” diameter x 60’ high 75,000 BBL Capacity, Three (3) 80’-0” diameter x 60’ high 53,000 BBL Capacity, and One (1) 36’-0” diameter x 32’ high 5800 BBL Capacity API 650 welded steel storage tanks with internal floating roofs constructed and painted in Tacoma, WA.
4 each 80 BBL API 650 Storage Tanks 120′ diameter x 40′ high with internal floating roofs. This was a design/build project for a private developer. All 4 tanks were field erected in a five-month window to meet the client’s schedule to become operational.
T BAILEY, INC. erected a new 4MG 105’d x 68′ tall water reservoir for a private developer in the new Maple Ridge Highlands Community. We also erected a new 26’d x 133’h standpipe and a complete pump station for the water system in this new development.
A 2006 Steel Tank Institute Tank of the Year Award-winning 160’ft high x 53’d welded steel water tank with a self-supported seal welded knuckle roof. The site was located in a new housing development and had very limited access and the developer requested minimal clearing on site.
T BAILEY operated as the general contractor and was awarded the Water System Improvement Project for the City of Vale, Oregon. The project was designed to eliminate toxins from the city’s drinking water, specifically arsenic. The City of Vale received funding from the Federal Safe Drinking Water Revolving Loan Fund which utilizes American Iron and Steel (AIS) Requirements for the Project. AIS requires all building materials utilizing iron or steel products to be produced in the United States.
Tank improvements to 3 existing water reservoirs including ladders, platforms, roof vents, shell stiffeners (pictured above), piping, and interior and exterior concrete foundation improvements.
T BAILEY performed extensive rehabilitation on an existing welded steel water tank including major foundation modifications, removing, seal welding, and replacing the entire roof, adding two additional shell courses, spiral stairs, demolition of an adjacent tank and foundation, and additional tank and site upgrades.
The new 4.2MG water reservoir was 80’d x 115’high. T BAILEY, INC. donated the cost to paint a custom logo on the tank for the local high school located next to the tank site.
