T BAILEY operated as the general contractor to construct a 5.2M gallon AWWA water reservoir for the City of Olympia. This turn-key project included designing, shop fabricating steel, and field erecting an 80’ diameter x 144’ tall above ground welded steel tank reservoir with a self-supported domed roof.
Above Ground Water Storage Tank Project
T BAILEY operated as the general contractor to construct a 5.2M gallon AWWA water reservoir for the City of Olympia. This turn-key project included designing, shop fabricating steel, and field erecting an 80’ diameter x 144’ tall welded steel tank water reservoir with a self-supported domed roof.
In addition to the welded steel water tank, T BAILEY, INC. self-performed civil work which included the reinforced concrete foundation, underground pipe and utility installations, including catch basins, manholes, and a CMU electrical control building with a backup generator.
This project was subject to the newly mandated provisions of EPA’s American Iron and Steel (AIS) requirements, which requires all permanent construction material consisting of more than 50% steel to be produced in the United States.

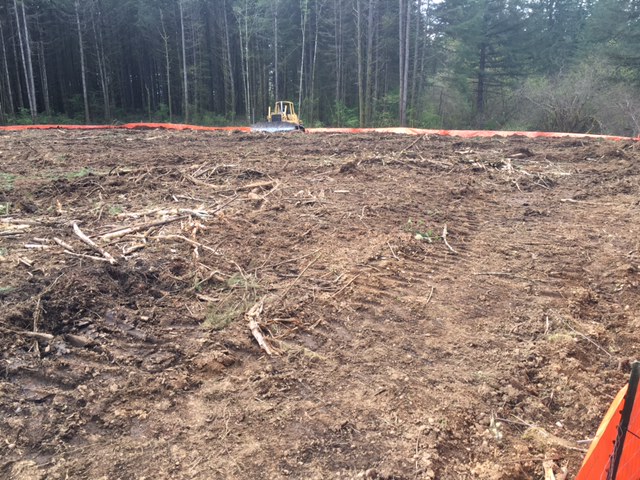

When the project broke ground, logging, clearing & grubbing was necessary to create a 2,100-ft long heavy duty access road to reach the actual job site and allow the heavy equipment and materials required for the project to be delivered. The existing forest conditions were rough and extremely wet and swampy. To overcome this, we excavated down several feet to remove all the mud and clay, put down a liner, then filled the area with crushed rock. This created a very stout road that would support the needs to construct and maintain the tank.

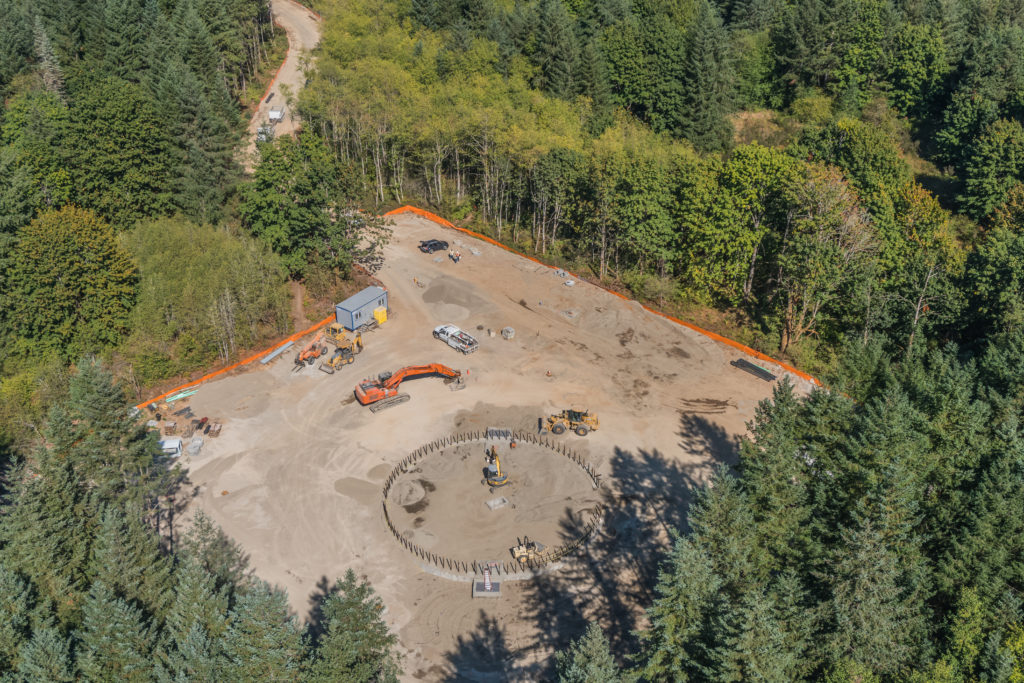

The reservoir is anchored to its foundation with the use of 89 high strength anchor bolts that are 4”diameter x almost 10 feet long. The tank reinforced concrete foundation was also a monstrosity, reaching 18 feet into the ground and requiring over 150 tons (300,000 pounds) of reinforced steel (rebar) and 1,800 cubic yards of concrete (that’s 200 concrete trucks!).
In addition to shop fabricating all the plate steel to erect the tank, the T BAILEY shop fabricated 256 stair treads – which is about 21 standard flights of stairs – which was then attached in the field.

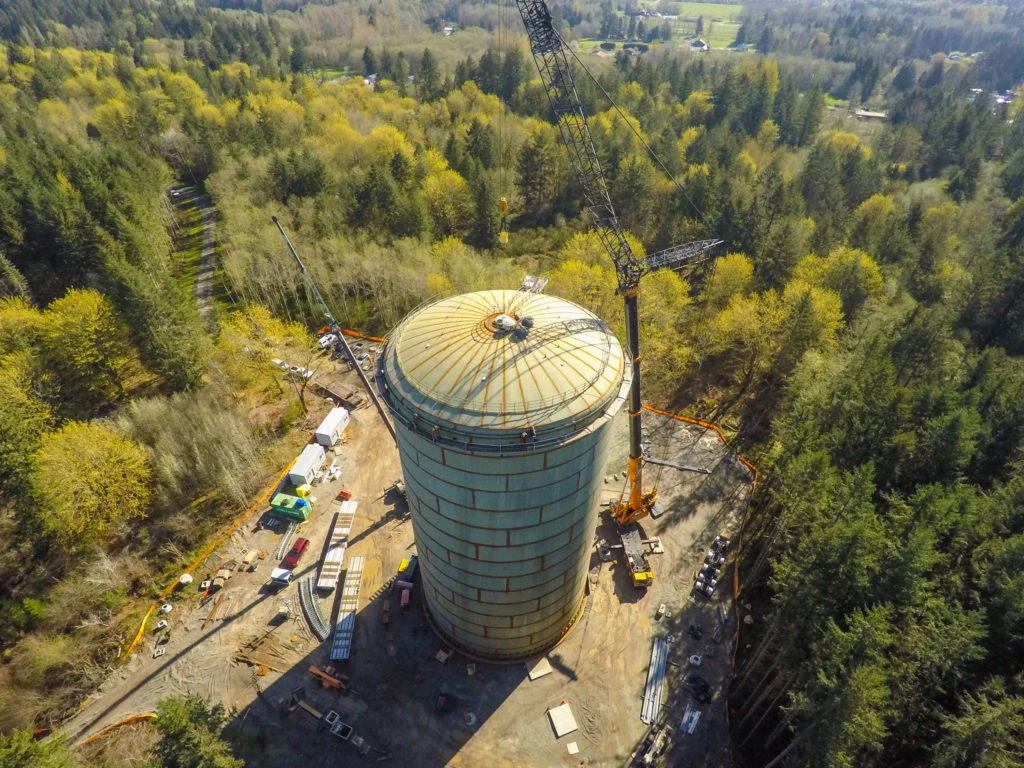

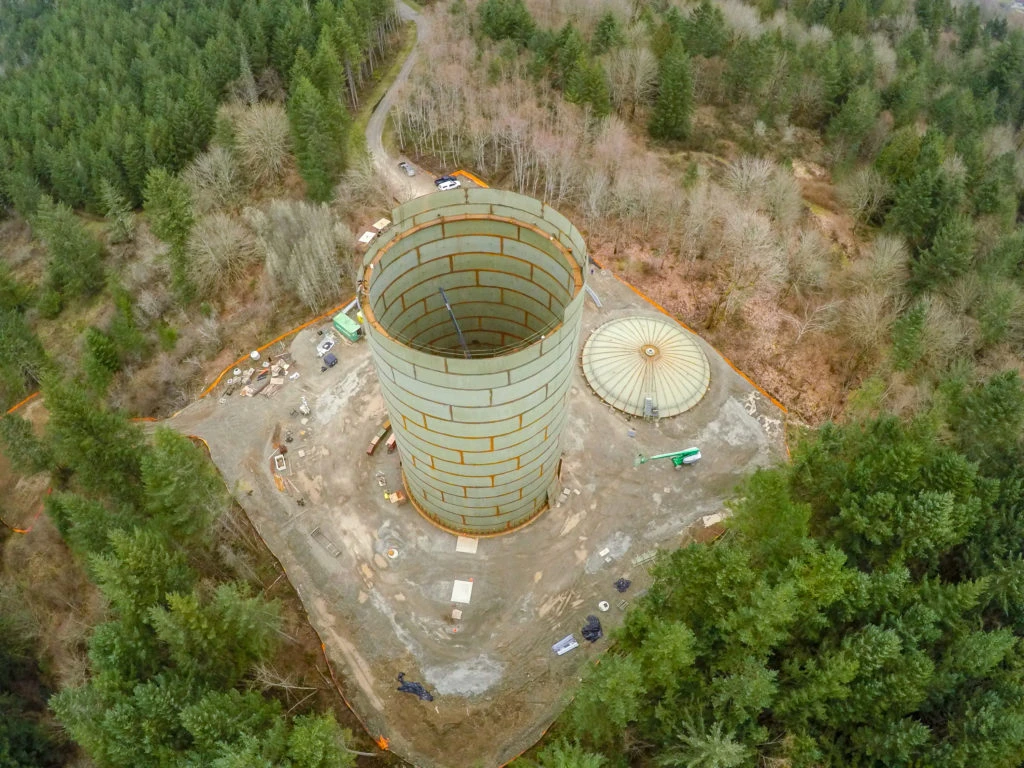

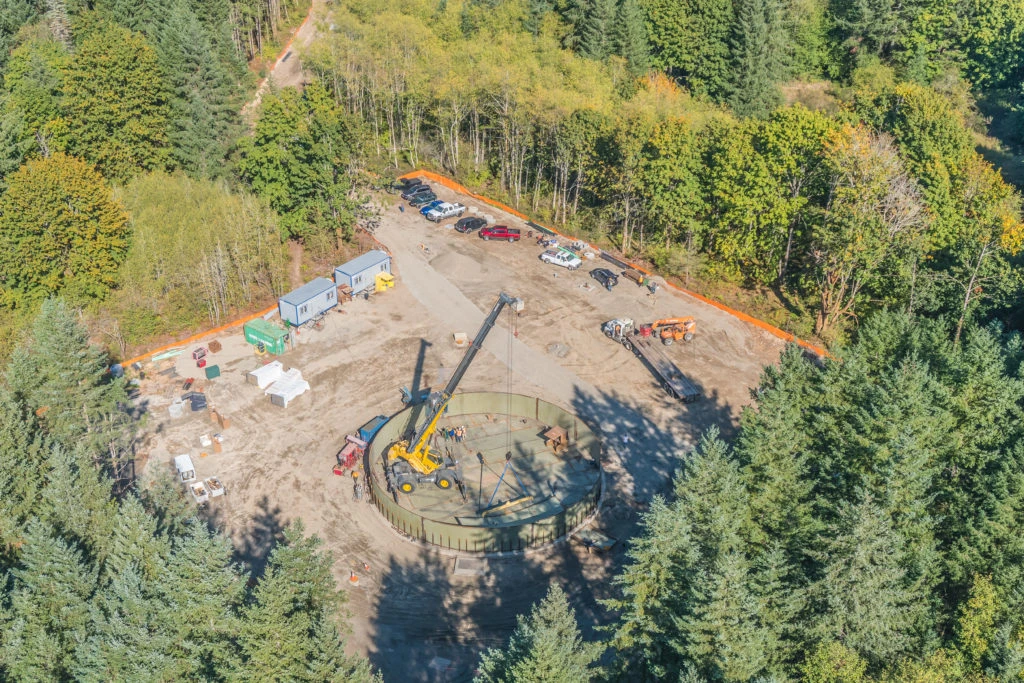

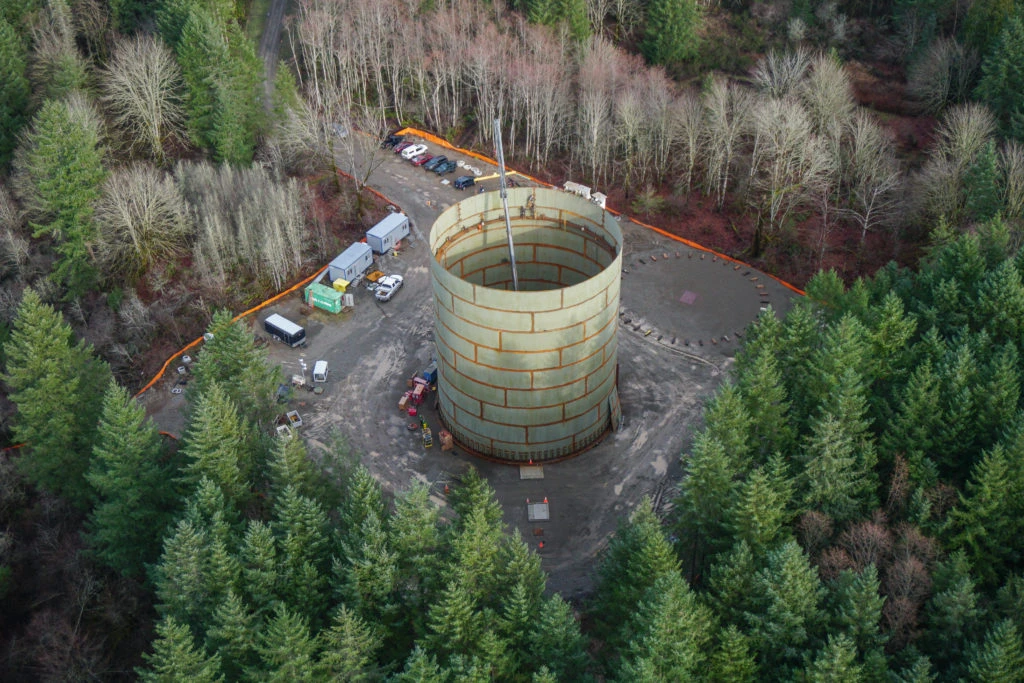

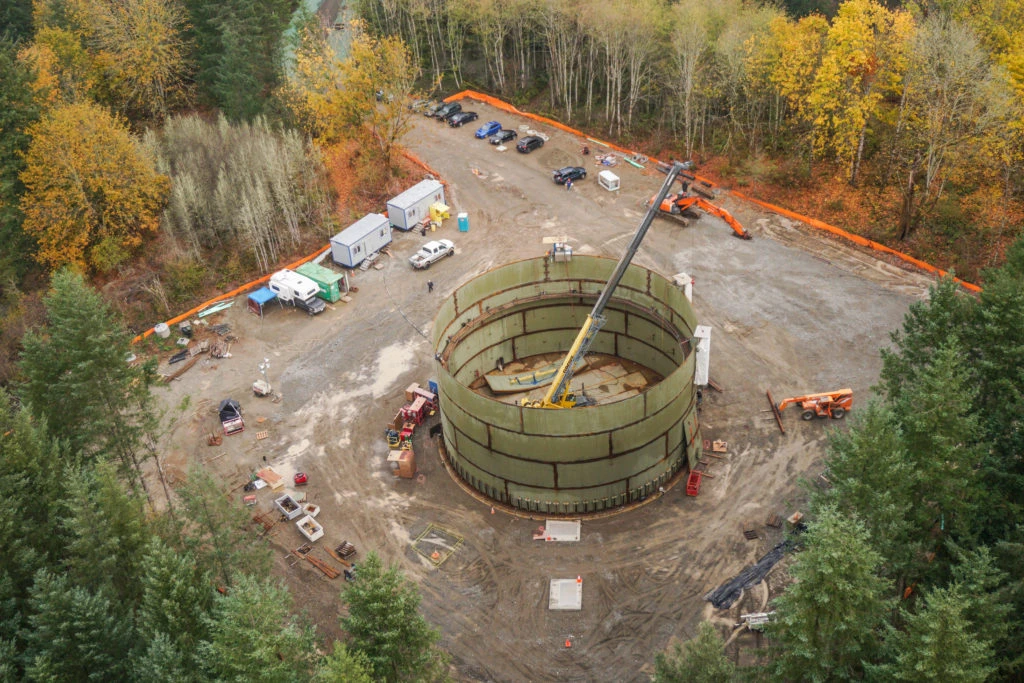

During tank construction, T BAILEY utilized our specialized custom-made automatic welding machine (Vertomatic) for welding the vertical weld seams, and three-o-clock automatic for welding the horizontal weld seams. This allowed for efficient and precise welding of the complete penetration joints required for the tank construction. The tank steel weighs 700 tons (1.4 million pounds). The tank’s self-supporting dome roof was built on the ground, simultaneous to tank construction, and then lifted up into place using a 550-ton crane.
In order to apply coatings to the tank, our field painter began by constructing a complete scaffolding and containment system around the entire exterior of the reservoir. This was done to control environmental conditions during painting operations and also to prevent blasting abrasives and paint overspray from leaving the immediate area.
Upon completion of the structural work of building the tank and support buildings, site paving and fencing were installed and the surrounding site was restored with landscaping, walking paths, and enhanced wetlands.
T BAILEY, INC. fabricated, coated and delivered approximately 786 LF of 119” diameter ½” thick steel pipe in various lengths ranging from 5’ L – 43’ L, including 3 elbow sections, 12 ring girders, 24 slide bearing / fixed bearing supports, trash rack structure and 215’ of catwalk.
4 each 80 BBL API 650 Storage Tanks 120′ diameter x 40′ high with internal floating roofs. This was a design/build project for a private developer. All 4 tanks were field erected in a five-month window to meet the client’s schedule to become operational.
T BAILEY, INC. erected a new 4MG 105’d x 68′ tall water reservoir for a private developer in the new Maple Ridge Highlands Community. We also erected a new 26’d x 133’h standpipe and a complete pump station for the water system in this new development.
T BAILEY, INC. performed site development including fuel containment and underground utilities to accommodate 3 new API 650 fuel tanks and 2 UL 142 fuel tanks.
A 2006 Steel Tank Institute Tank of the Year Award-winning 160’ft high x 53’d welded steel water tank with a self-supported seal welded knuckle roof. The site was located in a new housing development and had very limited access and the developer requested minimal clearing on site.
Tank improvements to 3 existing water reservoirs including ladders, platforms, roof vents, shell stiffeners (pictured above), piping, and interior and exterior concrete foundation improvements.
T BAILEY performed extensive rehabilitation on an existing welded steel water tank including major foundation modifications, removing, seal welding, and replacing the entire roof, adding two additional shell courses, spiral stairs, demolition of an adjacent tank and foundation, and additional tank and site upgrades.
The new 4.2MG water reservoir was 80’d x 115’high. T BAILEY, INC. donated the cost to paint a custom logo on the tank for the local high school located next to the tank site.
