Floating Roof Tank Fabrication Experts

WATCH VIDEO

For nearly 35 years, T BAILEY LLC has been fabricating and constructing floating roof tanks for the petroleum industry in the Northwest. Whether you need an external or internal floating roof tank, a single or double deck, aluminum or steel, or any other configuration of floating roof, we have the experience, equipment, and crew necessary to build your tank.

Our process-driven tank fabrication, commitment to quality control, and clear communication with customers have all established T BAILEY LLC as an industry-leader whose tanks stand the test of time.

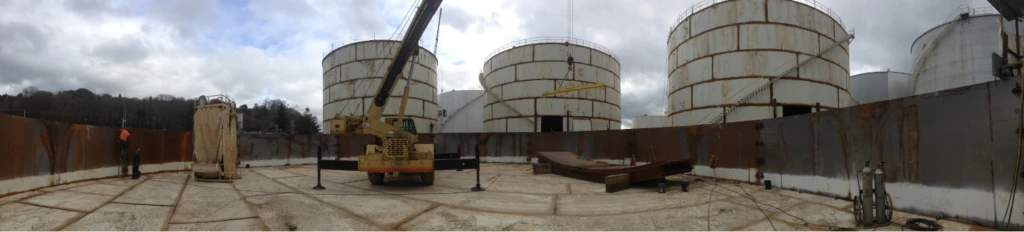

Floating Roof Tank Construction

What Is a Floating Roof Tank

A floating roof tank is a steel storage vessel equipped with a buoyant deck that rests directly on the surface of the stored product. As product is added or withdrawn, the floating roof rises and falls with the liquid level. This contact between the roof and the product surface virtually eliminates the vapor space above the liquid, which is the primary mechanism for controlling emissions of volatile organic compounds (VOCs) and other hazardous air pollutants regulated under standards such as 40 CFR 63.1063.

There are two principal floating roof tank design configurations:

  • External floating roofing tanks
  • Internal floating roofing tanks

An external floating roof tank uses the floating deck as the only roof structure, open to the atmosphere and relying on rim seals, drainage systems, and weathershields for environmental protection. An internal floating roof tank adds a fixed steel roof over the shell, with the floating deck operating inside the enclosed space. Internal floating roof storage tank designs are common where weather protection or additional emissions containment is required, while external floating roof storage tank configurations are typically used for larger-diameter petroleum storage where the tank diameter makes a fixed roof impractical.

The specific internal floating roof tank design or external configuration is selected based on what is being stored, the regulatory environment governing the facility, and the physical conditions of the site.

T Bailey LLC Case Study CTA

Benefits of Floating Roof Tanks

Floating roof tanks offer several operational and regulatory advantages for petroleum and chemical storage. By eliminating the vapor space between the product surface and the roof, floating roof storage tanks substantially reduce VOC emissions, helping operators meet air quality permit requirements and EPA standards. The reduction in vapor accumulation also lowers the risk of fire in the rim seal area compared to conventional fixed-roof tanks. Additionally, floating roof tanks minimize product loss through evaporation, which provides a measurable economic benefit over the service life of the vessel.

External floating roof tanks do require properly designed and maintained drainage systems to prevent rainwater accumulation on the deck surface. T BAILEY LLC designs and fabricates external floating roof tanks to API Standard 650, Appendix C, which requires the floating roof to support a 10-inch rainfall event over a 24-hour period. Combined with correctly sized drain systems and routine maintenance, this ensures reliable performance in all weather conditions.

For operators managing volatile products under strict air quality requirements, floating roof tanks remain one of the most effective storage solutions available.

Testimonial

There was no better intermediary for ensuring the construction project was always running smoothly and at its peak. They were a great coordinator and leader; able to convince everyone from subcontractors to engineers to follow their lead. This is because they exude knowledge and expertise that inspires trust in their work.

The Nyanza Tank and Booster Replacement had many scheduling hurdles to overcome by T Bailey. The District needed to build the new 2MG tank and booster station while keeping the existing online. T Bailey was able to work with the surrounding neighborhood, come up with innovative solutions, and bring the new tank and booster station online smoothly and with very few changes to the project.

I would like to suggest you work with the company, TBailey LLC
I strongly reference the partnership of the company for your contractor.

LAKEWOOD WATER DISTRICT

We appreciate the high quality work provided by T-Bailey and your subcontractors. The project was well managed and your team provided exceptional customer service to our neighboring customers throughout the project.

I want to personally thank you for your continual efforts to meet or exceed the contract requirements and for your personal and prompt attention to any questions or concerns.

We look forward to the opportunity to work with you on a future project

LAKE WHATCOM WATER & SEWER DISTRICT

We appreciate the high quality work provided by T-Bailey and your subcontractors. The project was well managed and your team provided exceptional customer service to our neighboring customers throughout the project.

I want to personally thank you for your continual efforts to meet or exceed the contract requirements and for your personal and prompt attention to any questions or concerns.

We look forward to the opportunity to work with you on a future project.

Sincerely,

LAKE WHATCOM WATER & SEWER DISTRICT

T Bailey LLC has built over a dozen petroleum storage tanks for our site and rebuilt a number of others in our working tank farm in the last several years.

While known for their remarkable speed to complete their work, in our case, it has been done safely despite very congested working conditions with the other trades and often rough weather conditions- both high winds and rain. Work was stopped appropriately when wind was a problem and proper precautions were taken.

Highly experienced oversight was brought in on the more challenging tasks to insure safe completion at our site. T Bailey’s equipment is usually the newest and in the best condition, which I’m sure helps their success.

We’d recommend T Bailey LLC for future work.

TARGA SOUND TERMINAL LLC

T Bailey worked diligently from the initial quote stage through fabrication to meet the needs of our client and have demonstrated their professionalism and experience at every turn. They have opened their doors and entertained multiple visits from both ROC Equipment and SFI before and during the fabrication process. While onsite, T Bailey representatives answered various technical questions that demonstrated their vast knowledge of the product and the drilling industry in particular. The attention to detail and QA/QC was obvious when observing the fabrication process and both ROC and SFI were extremely impressed. Employees took great care in their work, which says a lot about the employees themselves, but also their employer. T Bailey has also been very amenable to any design changes and schedule changes that have been requested by our client.

Above all, it has been TBailey’s product that has been so superior. The exceptional rolling, welding, and flush grinding actually caused excitement when the casing arrived to the project jobsite.

Based on this response and our own satisfaction, T Bailey will be ROC’s casing fabricator of choice, regardless of where the project is located. Potential savings in shipping costs from a closer fabricator are not worth foregoing the high quality product offered by T Bailey.

ROC Equipment

Floating Roof Tank Fabrication and Construction Capabilities

T BAILEY LLC fabricates and constructs floating roof tanks across a full range of configurations and project scopes, including:

  • New floating roof tank construction: Fabrication and field erection of both external and internal floating roof tanks, including single-deck and double-deck configurations
  • Floating roof retrofits: Converting existing fixed-roof petroleum tanks to floating roof operation by manufacturing and installing a new floating roof
  • Floating roof repair and replacement: Removing deteriorated floating roofs and fabricating replacements to meet current code requirements
  • Materials: Aluminum, steel, and fiberglass floating roofs for both new and existing tanks

Our tank roof fabrication capabilities are backed by an in-house steel fabrication and steel construction division that handles field erection for large-diameter floating roof tanks. Because every phase runs through T BAILEY LLC, the project stays under one quality standard from the first weld to final field installation, with no handoffs to outside contractors.

For tanks that require repair, retrofit, or scheduled maintenance on an existing floating roof, T BAILEY LLC also provides tank repair and maintenance services through our field operations team.

Certifications and Quality Control

T BAILEY LLC maintains the certifications required to fabricate and construct floating roof tanks for regulated petroleum and industrial storage applications. Our floating roof tank fabrication credentials include:

  • API 650 certification: The governing standard for welded tanks used in petroleum storage, including Appendix C for external floating roofs
  • AWS D1.1 certification: Structural welding code compliance across all tank fabrication
  • AISC Certified Fabricator: With all three Sophisticated Paint Endorsements
  • SSPC QP3 certification: For in-house surface preparation and coating application
  • CWB Certification: For projects serving the Canadian market

Quality control across every floating roof tank project is overseen by our in-house AWS Certified Welding Inspectors. The testing and inspection process covers every stage of production, including visual inspection with step-by-step process monitoring, positive material identification (PMI), blast and lining profile measurement, dry film thickness (DFT) testing, environmental monitoring, adhesion testing, and lining continuity (holiday) testing.

Additional non-destructive examination methods, including radiographic testing (RT) and ultrasonic testing (UT), are performed based on project and code requirements.

These certifications, coupled with in-house inspection and testing at every stage, ensure that every floating roof tank meets applicable code requirements and performs reliably from the day it enters service.

Start Your Floating Roof Tank Project

T BAILEY LLC has fabricated and constructed floating roof tanks for clients across the oil and gas, fuel storage, chemical processing, and marine sectors. Our Anacortes, Washington facility is located 5 miles from a deep-water port, 7 miles from a rail spur, and 10 miles from Interstate 5, giving clients flexible shipping options for oversized floating roof storage tank components.

Contact T BAILEY LLC today to discuss your floating roof tank fabrication and construction requirements and how we can support your scope through field installation.

Services

Construction

Our roots in industrial construction have given us the experience your project needs.

CONSTRUCTION SERVICES
Civil Construction
Field Erected Tanks
Tank Construction

Fabrication

Our steel fabrication division can meet the unforgiving shipping and construction schedules of our customers, delivering high-quality projects on time.

FABRICATION SERVICES
Custom Steel Fabrication
Steel Tank Repair & Maintenance
Steel Storage Tank Fabrication
Shop Built Tank Fabrication
Water Storage Tanks
Fire Protection Water Storage Tanks Fabrication
Wastewater Storage & Management
Gas Storage & Management
Oil Storage & Management
Industrial Steel Stack Fabrication
Floating Roof Tank Fabrication
Fireguard Fuel Storage Tank Fabrication
Pressure Vessel Fabrication
Penstock
Pipe Piling
Steel Casing Pipe
Steel Plate Fabrication

Coatings

With a ride range of coating abilities, our industrial painting division can provide the surface preparation and coatings your project needs.

COATING SERVICES
Surface Preparation
Industrial Painting
Metalizing
Blasting

Main Equipment

Our facilities are geared to the fabrication of AWWA and API field-erected welded steel storage tanks, UL and API shop tanks, pressure vessels, AWWA C200 water pipe, wind energy towers, large plate exhaust duct, and large diameter casing. Fabricated materials can be primed and painted before being shipped directly to a client’s job site, or tied in with our construction division. We also have tank repair services.

  • 4-roll hydraulic plate bending rolls, up to 2.75” x 10’-0 wide plate
  • CNC plasma cutting machines, 11’ x 50’ water tables
  • Numerous tandem head welding manipulators
  • Numerous single head welding manipulators
  • Tank/vessel turning roll sets, up to 100-ton capacity
  • Automated blasting system
  •  Blask booth 25’ x 120’
  • Paint Booth 25’ x 120’
  • Iron workers
  • Several overhead bridge cranes, up to 50 tons capacity
  • Welding power sources for most welding processes
    • SAW
    • FCAW
    • SMAW
    • GMAW
    • GTAW
    • EWS
  • Angle iron bending rolls
  • 3 O’clock automatic welders
  • Press brake
  • Multiple forklifts, up to 55 tons capacity
  • RT hydraulic cranes, up to 60-ton capacity
  • Scissor and snorkel personnel lifts
  • Extended boom forklifts
  • Dozer and excavators
  • Long haul trucks and trailers
  • Vertamatic welder
  • 5-axis CNC contour beveling plasma cutting table
