A 2006 Steel Tank Institute Tank of the Year Award-winning 160’ft high x 53’d welded steel water tank with a self-supported seal welded knuckle roof. The site was located in a new housing development and had very limited access, and the developer requested minimal clearing on site.

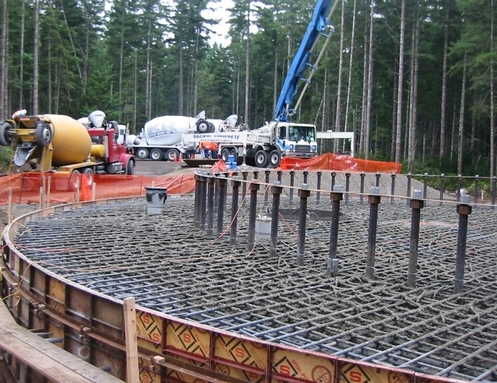

The foundation was 80′ diameter x 8′ thick with approx. 335,000 lbs of rebar and 60,000 lbs of anchor bolts to keep the tank from overturning in a seismic event. The massive foundation was poured in one monolithic pour of over 1500 cy of ready-mix concrete delivered in over 150 truckloads.
Name: North Water Reservoir
Category: Civil Construction
T BAILEY, INC. performed site development including fuel containment and underground utilities to accommodate 3 new API 650 fuel tanks and 2 UL 142 fuel tanks.
T BAILEY operated as the general contractor and was awarded the Water System Improvement Project for the City of Vale, Oregon. The project was designed to eliminate toxins from the city’s drinking water, specifically arsenic. The City of Vale received funding from the Federal Safe Drinking Water Revolving Loan Fund which utilizes American Iron and Steel (AIS) Requirements for the Project. AIS requires all building materials utilizing iron or steel products to be produced in the United States.
Before erecting the new 12MG 184′ d x 63′ high water reservoir, T Bailey, INC. prepped the site including clearing approximately 6.5 acres, mass excavation of over 40,000 cy, grading, and 2000LF of large diameter transmission and yard piping.
The new 80’diameter x 115’h 4.2MG water tank sat on a 110′ diameter x 4.5′ thick mat foundation with a 5.5′ tall ringwall. The foundation contained over 1800 cy of concrete, 147 tons of rebar and 86 each 2 1/2" diameter anchor bolts. The project had a total of 7000 cy of mass excavation to accommodate the new foundation and detention pond.
Project included demolition/removal of an existing standpipe and construction of a new 2.5MG water reservoir, foundation, associated site earthwork/grading, utilities, electrical, telemetry, etc. The new foundation consisted of approximately 1000 cy of concrete to form a 87’ diameter mat foundation for the reservoir with 76 anchor bolts and approximately 144,000 lbs. of steel reinforcement.
Seismic upgrades to the existing 5MG water tank included 45 each new prestressed earth anchors through an expanded concrete foundation with new anchor chairs, piping and other misc. upgrades.
T BAILEY, INC. built a new Pump Station for the private developer of the Maple RIdge Highlands to go along with the new 4Mg Water Reservoir and .5MG Standpipe.
T BAILEY, INC. erected two new replacement standpipes for the City of Issaquah and removed two existing standpipes that were no longer up to current building code requirements. The new tanks sat on one massive foundation on a confined site that required mass excavation of 3000 cy and 4 underground utility vaults and associated valves and piping.
